TWBH Two-shaft Turret Winder

Robot Industrial Co., Ltd.
2軸ターレット型巻取機 TWBH型

Characteristics:
Using a touch roller weight canceling rewinder, the winder peripheral rollers, such as the touch roller and pick-up roller, are included in one unit. This revolutionary winder moves the touch roller horizontally with an AC servo motor. The winder attaches the material without any folding (optional mechanism). It also eliminates folding and all wrinkles caused by folding at the outset of standard rewinding, so the material can be used to the roll core.

Specifications:
-Roll Face Length: 800 to 2,500 mm
-Rewinding Diameter: 600 to 800 mm
-Rewinding Speed: 40 to 100 m/min
-Tension Control: 20 to 100 N
-Touch Pressure Control: automatic pneumatic control
-Near Touch Control: automatic control via roll diameter calculation
-Rewinding: fully automated tapeless system


Contact Information:
6762 Nakatsu, Aikawa-machi, Aiko-gun, Kanagawa 243-0303 Japan
TEL.+81-46-285-2591  FAX.+81-46-285-2592
Email:
URL:http://www.robot-k.co.jp/

Sales Office:

Products:
Take-up Winders, Winders, Edge Rewinders, Unwinders, Rewinders, Gravure Printing Machines, Paper Core Cutters.

To request detailed materials on the above product, please click the contact button below.

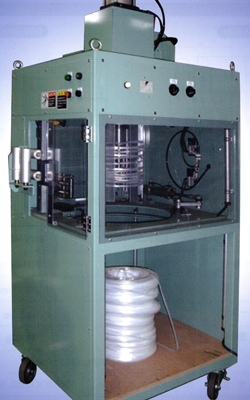

Bobbinless Edge Winder (Patent No. 4428603)

Robot Industrial Co., Ltd.
ボビンレス耳巻取機

Characteristics:
This machine is a new type of vertical edge winding machine for winding the edges trimmed from films on the film production line. The slit edges are wound on a vertical reel. When the reel is full, the winding frame automatically contracts as if it were an umbrella to release the wound edge, while attaching and cutting for the next winding are also automatic. Because rewinding is automatic, this machine can be used on high-speed lines. Moreover, because it does not use a paper core, there is no need to deal with a paper core when the wound edges are reused or discarded.

Applications:
-T-die sheet forming lines, blown extrusion film lines, etc.
-Secondary processing lines, including laminators and slitters (especially high-speed machines)
-Pouch making lines
-Perfect for adhesive tape edge winding

Specifications (2 types):

Type SWV-301H SWV-401H
Reel Outer Diameter 230mm 316mm
Winding Diameter 400mm 600mm
Traverse Volume 300mm 400mm
Roll Weight approx.15kg approx.30kg
Speed Standard Specifications: Max. 200 m/min
Machine Dimensions 800W×850L×2,200H 1,100W×1,100L×2,400H

Options include a roller conveyer for disposal, automatic disposal device, dancer control mechanism for speed following, and a special surface treatment for adhesive film reels. Options are available for other line structures.


Contact Information:
6762 Nakatsu, Aikawa-machi, Aiko-gun, Kanagawa 243-0303 Japan
TEL.+81-46-285-2591  FAX.+81-46-285-2592
Email:
URL:http://www.robot-k.co.jp/

Sales Office:

Products:
Take-up Winders, Winders, Edge Rewinders, Unwinders, Rewinders, Gravure Printing Machines, Paper Core Cutters.

To request detailed materials on the above product, please click the contact button below.
