Lip Coater

Hirano Tecseed Co., Ltd.
リップコーター

Since its development, we have sold more than 500 our lip coaters, which have been well received on the global market. In lip coating, the resin weight calculated based on the numerically input coating conditions is fed to the lip head. These conditions are controlled by the lip coater specialized L301 controller, which can be used to remotely adjust the lip head coating gap using a key control. The lip head has a mechanism that allows the lip to be bent on the left and right sides, as well as the middle, which allows for free width direction resin profile control.
An optional unit allows for a thickness meter to be linked to the L301 controller to feed back the actual coating thickness. This function and numerical control allow for automated operation of the coater line.
By using the lip coater in applications that require a high level of skill, it is possible to easily realize high-precision coating by simply mastering the key operation.

Applications:
Adhesives for optical films (OCA, etc.), light shielding films, PSA films, labels, ceramic green sheets, special films, electronic materials (FCCL, etc.), automobile components, medical items, adhesive coating

Specifications:
Roll Width: Max. width 2,500 mm
Machine Speed: Max. speed 500 m/min


Contact Information:
101-1 Kawai, Kawai-cho, Kitakatsuragi-gun, Nara 636-0051 Japan
TEL.+81-745-57-0685  FAX.+81-745-57-1075
Email:
URL:http://www.hirano-tec.co.jp/

Sales Office:
Tokyo Branch
Hulic Kanda Bldg. 3rd floor, 1-16 Kandasudacho, Chiyoda-ku 101-0041 Tokyo, Japan
TEL: +81-3-5289-8834 FAX: +81-3-3251-7999

Products:
Coaters, Laminators, Impregnation Machinery, Dryers

To request detailed materials on the above product, please click the contact button below.


DV Coater (vacuum slot die, DV slot die coater)

Hirano Tecseed Co., Ltd.
DVコーター

A “sealed” coating system that reduces solvent vaporization between the supply system and coating head is an essential criterion for consistently delivering high-quality coating. HIRANO TECSEED offers multiple “Die Coating Methods” adjusted to various coating film thicknesses, resin properties, and substrate characteristics to do just this. Of these, the “DV Coater” is especially suited to ultra-thin-film coating.
With shear coating methods, typified by lip coating, the “coating gap” formed between the die lip and the backup roller plays an important role in film forming. With recent ultra-thin-film coatings of less than 10 μm (wet), the influence of machine precision can have a significant negative impact on film thickness profiles in shear coating methods, even if the roller runout is only 1 μm. With the DV Coater, which allows for coating using a coating gap that is more than 10 times the wet coating thickness, it is possible to achieve high-precision coating that exceeds the machine precision. Moreover, This coating method can handle a high range of coating thicknesses and viscosities, as well as resin coating where high-shear is a problem in units that come in contact with the coating fluid.

Characteristics:
(1) Coating Range: able to coat a wide range of coating from 3 to 200 μm (wet)
(2) Coating Gap (between slot die and substrate): because the coating system coats with a gap that is several times to several tens of times the coating thickness (wet), coating is not subject to disturbance on the coating surface from substrate thickness variation, contaminants, and dust, etc.
(3) Viscosity Range: able to handle a range of 1 to 10,000 MPa•s
(4) Coating Speed: Able to coat at speeds ranging from low speed to high speed

Specifications/Applications:
Roll Width: Max. width 2,500 mm
Machine Speed: Max. speed 200 m/min
Optical functional films, photosensitive films, masking films, adhesive coating, electronic materials


Contact Information:
101-1 Kawai, Kawai-cho, Kitakatsuragi-gun, Nara 636-0051 Japan
TEL.+81-745-57-0685  FAX.+81-745-57-1075
Email:
URL:http://www.hirano-tec.co.jp/

Sales Office:
Tokyo Branch
Hulic Kanda Bldg. 3rd floor, 1-16 Kandasudacho, Chiyoda-ku 101-0041 Tokyo, Japan
TEL: +81-3-5289-8834 FAX: +81-3-3251-7999

Products:
Coaters, Laminators, Impregnation Machinery, Dryers

To request detailed materials on the above product, please click the contact button below.


Supply Type Doctor Blade Gravure Coater

Hirano Tecseed Co., Ltd.
給液式ドクターブレード付きグラビアコーター

The “Supply Type Doctor Blade Gravure Coater” is based on our gravure coating technology and reduced problems with open-type systems.
This machine uses a semi-sealed system that reduces solvent vaporization, which reduces changes in coating fluid viscosity and concentration and allowing for stable coating.
Chamber type machines, in particular, reduce the generation of foam resulting from high-speed coating to achieve a consistent coating film.
In addition, opening the chamber doctor eases the cleaning of the chamber and maintenance of the doctor blade.

Applications:
Silicone coatings, adhesive coatings, inks, anchor coatings, etc.

Specifications:
Working Roll Width: Max.2,500 mm
Machine Speed: Max.300 m/min


Contact Information:
101-1 Kawai, Kawai-cho, Kitakatsuragi-gun, Nara 636-0051 Japan
TEL.+81-745-57-0685  FAX.+81-745-57-1075
Email:
URL:http://www.hirano-tec.co.jp/

Sales Office:
Tokyo Branch
Hulic Kanda Bldg. 3rd floor, 1-16 Kandasudacho, Chiyoda-ku 101-0041 Tokyo, Japan
TEL: +81-3-5289-8834 FAX: +81-3-3251-7999

Products:
Coaters, Laminators, Impregnation Machinery, Dryers

To request detailed materials on the above product, please click the contact button below.

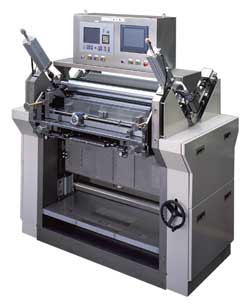

Unit Change Multicoater "M-200L"

Hirano Tecseed Co., Ltd.
ユニットチェンジ型マルチコーター「M-200L」

Developed based on our experience and technology accumulated through large-scale production machines, the Multicoated Series is a small, continuous coating machine. It is designed to evaluate coatings and products using a variety of coating methods, but also has a small-scale production function aimed at scaling up production to production machines, short-run production, and prototype production, for which it has been highly accepted. This series has already received several hundred orders since its development, but we also offer customized models to meet customer needs. Moreover, the coating unit is designed to be modular so that it can handle all coating methods. In fact, we have installed a Multicoater with this mechanism in our Technical test facility. In this way, we offer this machine as a development and production line for high-precision, high-value oriented products.

Applications:
Optical functional film, battery electrodes, combines adhesives, combines materials (FCCL, etc.), medical, photosensitive film, energy related (secondary batteries, fuel cells, etc.), automobile components related, and architectural material related

Specifications:
-Roll Width: 400 mm
-Machine Speed: 1 to 40 m/min
-Drying Speed: 60 to 180ºC
-Drying Length: 1.5 m/chamber × 3 chambers


Contact Information:
101-1 Kawai, Kawai-cho, Kitakatsuragi-gun, Nara 636-0051 Japan
TEL.+81-745-57-0685  FAX.+81-745-57-1075
Email:
URL:http://www.hirano-tec.co.jp/

Sales Office:
Tokyo Branch
Hulic Kanda Bldg. 3rd floor, 1-16 Kandasudacho, Chiyoda-ku 101-0041 Tokyo, Japan
TEL: +81-3-5289-8834 FAX: +81-3-3251-7999

Products:
Coaters, Laminators, Impregnation Machinery, Dryers

To request detailed materials on the above product, please click the contact button below.


Intermittent Stripe Coater for Electrode Plates

Hirano Tecseed Co., Ltd.
電極板用 間欠・ストライプコーター

The demand for lithium-ion batteries, including those for automobiles and stationary applications, is expanding. We have sold more than 250 lithium-ion electrode coaters, and manufacture and supply equipment that can handle the high-precision, high-speed coating demands required to meet the needs of the market. Our intermittent coating systems, required for electrode coaters, can be equipped with comma type coating heads for test and pilot lines that coat small volumes, as well as die coating heads designed for high-volume production. Our dedicated intermittent coating system realizes high-precision, high-speed, stable coating in intermittent die coating. We also have an electrode coater pilot line at our Technicum facility, which allows for pattern coating tests, including intermittent and stripe coating. As such, we hope you coat and evaluate your electrode slurries. Applications: Battery electrode coating (lithium-ion batteries, super capacitors, etc.) Specifications: Machine Speed: 30 to 100 m/min Roller Width: 400 to 1,500 mm


Contact Information:
101-1 Kawai, Kawai-cho, Kitakatsuragi-gun, Nara 636-0051 Japan
TEL.+81-745-57-0685  FAX.+81-745-57-1075
Email:
URL:http://www.hirano-tec.co.jp/

Sales Office:
Tokyo Branch
Hulic Kanda Bldg. 3rd floor, 1-16 Kandasudacho, Chiyoda-ku 101-0041 Tokyo, Japan
TEL: +81-3-5289-8834 FAX: +81-3-3251-7999

Products:
Coaters, Laminators, Impregnation Machinery, Dryers

To request detailed materials on the above product, please click the contact button below.

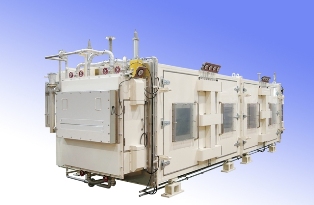

Dryers

Hirano Tecseed Co., Ltd.
乾燥装置

The quality of a coating product requires high-quality coating resulting from a high-precision coating head. At the same time, quality also relies on the stability and efficiency of the curing process, in other words the post-coating drying process. For this reason, we consider the drying process critical to the determination of coating quality.
Therefore, in aiming for higher quality, it is necessary to appropriately select the drying system functions and methods.
Based on the “heat and air” technology we have accumulated since our founding, we offer different drying technologies, including roll-supported and floating dryers, of which we have sold many units.
Moreover, a clean environment has become an essential factor in drying high-quality coating products, so by thoroughly controlling the drying environment, we have aimed to improve the performance of our clean dryers, which have been well accepted in various industries. We also manufacture inert drying units for when drying under low oxygen conditions is required. We hope you make use of these.


Contact Information:
101-1 Kawai, Kawai-cho, Kitakatsuragi-gun, Nara 636-0051 Japan
TEL.+81-745-57-0685  FAX.+81-745-57-1075
Email:
URL:http://www.hirano-tec.co.jp/

Sales Office:
Tokyo Branch
Hulic Kanda Bldg. 3rd floor, 1-16 Kandasudacho, Chiyoda-ku 101-0041 Tokyo, Japan
TEL: +81-3-5289-8834 FAX: +81-3-3251-7999

Products:
Coaters, Laminators, Impregnation Machinery, Dryers

To request detailed materials on the above product, please click the contact button below.
