Applications:
Coating of alumina slurry on wet or dry separator material for lithium-ion batteries.

Specifications:
-Machine Speed: 150 m/min
-Coating Speed: 100 m/min
-Substrate Width: 1,200 mm (max.)
-Unwinding/Rewinding Unit: 2-arm turret with automatic splicing
-Coating Unit: MCD coating method
-Drying Unit: 3,600 mm × 3 zones
-Installation Dimensions: length 14,600 mm, width 6,300 mm, height 4,700 mm

Installations:
Delivered to major Japanese and Chinese separator manufacturers.
For detailed specifications, feel free to contact us.

Characteristics:

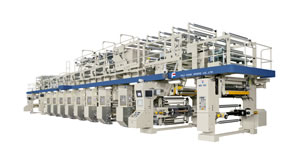

AC servo motor direct drive
The machine allows for precision cylinder phase control because it does not use a timing belt or reduction gear. The source of the printing cylinder phase is the motor source. The MD machine does not require an initial register bar and laser pointer, either. As such, printing can begin immediately once the printing cylinders are set.

Consistent Registration Precision
Equipped with the latest tension and color control, the machine maintains consistent registration precision even with conventional printing cylinders. When aiming for high registration precision (within ±0.05 mm), we suggest the necessary conditions, such as printing cylinder precision.

Significantly Reduced Loss
The result of the high-functional operations management system reduces loss to within a few meters. Therefore, the product rate is nearly 100%, significantly reducing waste paper.

High Operational Rate
Utilizing blank printing, free units, and an operational control system, operational rates are greatly increased, making it ideal for short runs.

Water-based Gravure Printing, Process Printing
By changing out the dryer and doctor, for example, the system can be used for water-based gravure printing and process printing.

Characteristics:
Clean level 100 or 1,000.
Equipped with our unique film processing equipment manufacturing knowhow developed over our long history in the field.

Specifications:
Applicable Substrates: polyimide, PET, copper foil
Coating Width: 1,000 to 1,600 mm
Machine Speed: 20 to 150 m/min

Other:
Polyimide/PET/Copper Foil Coater, Aluminum Coater, Ultra-thin Film Coater, Micro Chamber Coater

*Confirm your application on our test machines.

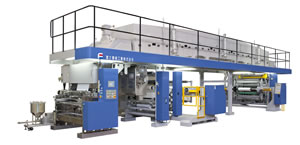

Characteristics:
This dry laminator comes equipped standard with our chamber doctor and lossless winding unit. By combining various material loss reducing technologies, the latest of our coating and laminating machines is easy to use while realizing high operational rates.

Specifications:
Printed Matter: plastic film, paper, other flexible material
Printed Matter Width: 1,050/1,150/1,250
Machine Speed: 180 m/min
Unwinding Diameter: 600 mm
Rewinding Diameter: 800 mm
Coating Method: direct gravure
