Features

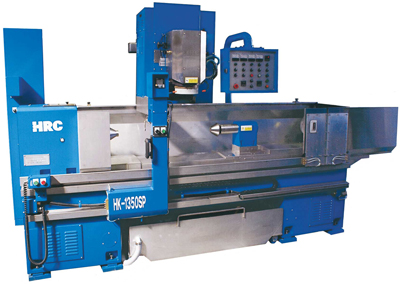

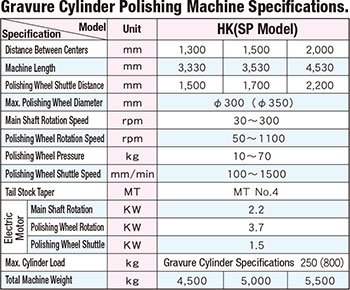

*Unlike the pressure calibration systems found in conventional polishing machines, our sturdy frame
and whetstone head utilize a unique HRC pressure calibration mechanism that enables both heavy
grinding and an ultra-mirror surface finish polishing.

*The whetstone can be replaced for a cylinder mirror finish polish, regardless of the type of material.

*We can also produce polishing machines for shaft cylinders.

Option: digital cylinder diameter meter (φ100–300 mm) is also available.

Characteristics:
-Can process at a cylinder revolution of 1,500 rpm (Except the case of large dynamic balance)
-Easy to use digital LCD display panel
-Installation footprint is 1/3 that of standard horizontal NC lathes
-Processing time is 1/2 that of standard machines
-Installation footprint: 2,100(L)×1,450(D)×3,000(H) mm

Characteristics:
-Easy to use, simple table top mini-gravure proofing machine
-Convenient for laboratory use on research desk tops
-Rapid test color sampling
-Saddening method replaces drawing paper used during printing
-Greatly helps in producing samples of used ink and managing ink storage
-Also useable as a color transfer device for computer color matching (CCM)
-Wide range of applications, including coating, paste coating testing, transferring, and performance test of printing substrates

Specifications:
-Cylinder: φ130×150 mm
-Impression Cylinder: φ130×100 mm
-Printing Speed: variable (10 to 60 m/min)
-Printing Method: manual
-Weight: 60 kg
-Dimensions: 420(L)×450(W)×430(H) mm

Characteristics:
-Simultaneously inspects for defects (debris, voids, splatter, blurring, printing misalignment, etc.) inline on printed matter while inspecting tone for the entire image, as well as displaying a graph of the difference with the standard for each ink key width on a monitor.
-Can be set to inspect important tonal areas (skin tones, company logo marks, etc.) for precision inspection.
-Inspection is fully automated with the touch of one button, from master registration to beginning inspection.
-Manual setting of defect inspection areas (maximum of 10 locations) and inspection level (5 levels) is also possible.
-Inspection history can be displayed on the machine, or printed out on a small attached printer and uploaded to CD/DVDs.
-The inspection head can also be installed on an operation stand for offline tone inspection of the entire printed image (can be attached to a maximum of 10 printing machines).

Applications:
Seal/label printing machines, rewinders, offset rotary presses, sheet-fed printing machines, gravure printing machines (option: blurring inspection function), newspaper rotary presses, flexo printing machines, cardboard printing machines

Characteristics:

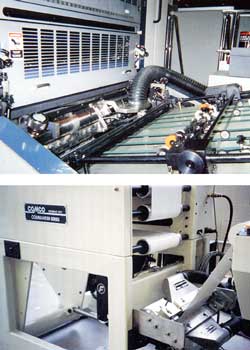

-Removes debris, including paper powder, powder, dust, punching scraps, slit scraps, and fiber scraps from sheet and web surfaces and edges
-Hybrid cleaners use a contact brush and a serrated non-contact face plate
-Over 5,000 units installed worldwide
-Over 200 units installed in Japan
-Can be installed on existing and new equipment
-Can clean all paper thickness, from thin to thick
-All Doyle cleaners are specially designed to work with the customer’s machine

New Product:
-Fully non-contact cleaner for sensitive substrates, including films and foils

Applications:
Sheetfed offset presses
lease-loan series, speed master series, dyer series, R series, planeta series (cannot be installed on all machines)
Rotary presses
offset rotary presses, thick paper packaging rotary presses, form rotary presses, gravure rotary presses, seal/label printing machines, flexo printing machines
Converting Machines
film processing equipment, laminators, slitters, corrugators, paper making lines, etc.
