Characteristics:
(1) Bearing Type Transport System
The transport system can rotate and turn for easy loading of wagons.

(2) Unwinder Hydraulic Lift System
Eases the handling of heavy items.

(3) 2-roll Flying Cutter Comes Standard
-The razor cutter holder can be attached with one-touch.
-Lifting is operated by a handle and can be finely adjusted.
-The cutter is positioned at eye level for excellent operability.

(4) Pneumatic Horizontal Shift Single Shaft Touch-roller
The touch pressure can be accurately controlled without influence of the roll diameter.

(5) Individual Pneumatic Touch Rollers
To handle high-speed slitting of films with high thickness variation, we also use pneumatic type individual touch rollers.

(6) Close at Hand Switch
By locating the switch that locks the unwinding arm in place close at hand, we improved the operability and safety.

(7) 2-spool Edge Winding System
-Using a 2-spool system, the edges of the left and right side of the roll are wound separately.
-Reducing edge problems contributes to the increased operational efficiency of the main slitter.

Specifications:
Substrates: simple and laminated films
Substrate width: min. 500 mm to 1,200 mm
Substrate thickness: min. 12 μm to max. 100 μm
Roller face length: 1,300 mm
Unwinding diameter: max. 800 mm
Rewinding diameter: max. 500 mm
Unwinding roll weight: max. 500 kg
Core: 3” inside diameter paper core
Machine speed: max. 400 m/min
Tension: unwinding min. 50 N to max. 250 N/full width rewinding min. 30 N to max. 170 N/m

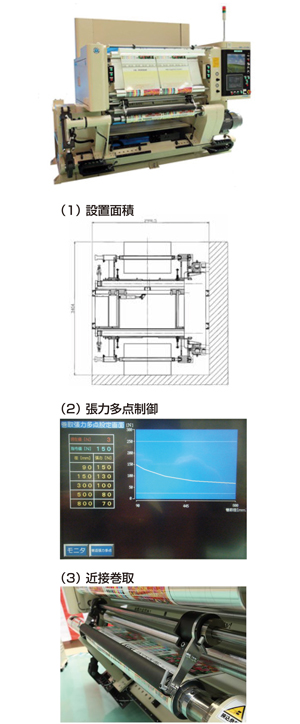

Characteristics:
Next generation, reduced space, integrated inspection system for those who want to “Effectively Use Space!”
(1) Being 30% smaller than conventional machines, this system improves operability and visibility
(2) Higher precision tension control
-By adopting a fully digital, high-speed control mechanism, the system realizes a control performance with 10 times the effectiveness of conventional models.
-By adopting multi-point tension control as the standard, rewinding quality is further improved
(3) Hydraulic proportional control for the unwinding/rewinding arm allows for contact rewinding

Specifications:
Substrates: simple/laminated films
Substrate Width: 400 to 1,200 mm
Substrate Thickness: 20 to 120 μm
Roll Length: 1,300 mm
Unwinding Diameter: Max. 800 mm
Rewinding Diameter: Max. 800 mm
Roll Weight: Max. 500 kg
Cores: 3-inch paper tube for unwinding and rewinding (75.5 mm diameter)
Machine Speed: Max. 300 m/min (standard inspection speed 150 m/min)
Tension: 40 to 250 N/total width (200 N for a 600 mm diameter)
