Characteristics:

-Three-type three-layer smooth flow die (350 mm diameter)

-high-efficiency DIREX extruder (75 mm ×1, 65 mm ×2)

-Auto-gauge air ring (non-contact sensor type)

-Internal cooling system (8 senor type)

-Draw speed 120 m/min (max), speed ratio control

-Draw Reversing Device (with program turnover function)

-Chilled air generator

-Carbon roll stabilizer

-Carbon roll guide roll

-Carbon roll bracer

-Front and rear facing tension pick-up type rewinder

-Selection of gap or contact rewinding

-Max roll diameter: 1,000 mm

Specifications:

Max. Extrusion Volume: 650 kg/h

Max. Productivity: 450 kg/h

Variation Precision: 3-4% (actual results)

Comments:

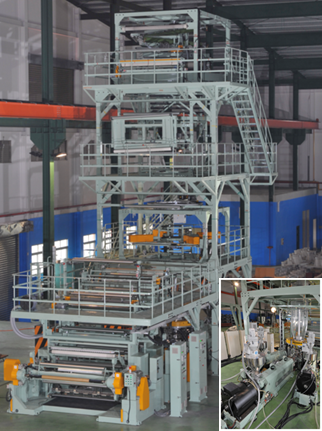

As a fusion of our technology, this advanced, high-output film forming machine realizes the productivity of European built machines and the quality of Japanese built machines.
