<Features>

Integrated with a camera and LED lighting, the new Coco! optical sensor is designed to be compact. The sensor is able to produce uniform images with little distortion, clearly detects the edges of the image, and offers variable dpi resolution (150, 300, 600 dpi).

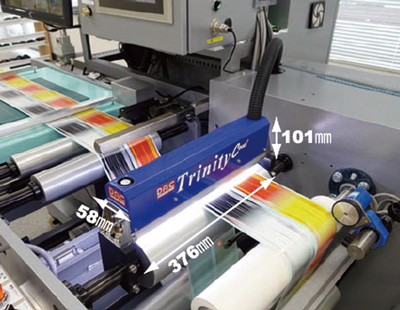

The optical system in the Trinity Coco TCC301 Sticker & Label Inspection System is 58 × 101 × 376 mm in size and has an inspection width of 300 mm. The system photographs the surface of the labels in the rewinding machine or printing machine and converts the lines to an area density image. Meanwhile, full color image processing allows the system to automatically detect defects (contaminants, ink splatter, etc.). The system also displays rejected output and defect images in full color. In addition to local variable text inspection, the system is capable of inspecting the quality of the entire surface of every unit, even with digital printing where the printing data changes for each unit.

<Specifications>

●Total Inspection Width 300 mm (with a 2,000 K Coco! sensor)
●Minimum resolution: X=0.17 mm (width resolution) Y=0.30 mm (travel direction resolution) at 300 mpm, Y=0.17 mm at 170 mpm
●External Dimensions: 58 (W) × 101 (H) × 376 mm (D)

 <Application Examples>

● Double-sided business form printing inspection system
●Rotary printing machine inspection system
●Digital printing inspection system
●Flexo printing inspection system

<Features>

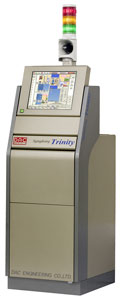

Ever since sales began in 1995, DAC ENGINEERING’s Trinity Well printing inspection systems have been based on a unique inspection technology that uses a 1-pixel unit full-color density inspection method. Given their high general-purpose applicability, these inspection systems have been adopted in an extensive range of fields, including gravure printing, high-speed rotary printing, sheet-fed offset printing, packaging printing, business form printing, and special securities printing. The latest Trinity Well model goes beyond conventional high-performance inspection to offer standard options including simultaneous color density monitoring, an image filing capability, and queuing by product type. As a system that prevents printing defects, we have designed Trinity Well to both ensure product quality and provide a powerful traceability function that tracks the defect detection data from the entire surface of every product unit.

 <Applications>

When the high-precision 3CCD color camera line sensor unit and special lighting unit are installed on the production line, the Trinity Well printing inspection system allows for online inspection of the entire surface of every unit of a variety of printed product types. The system can also be used offline.

 <Specifications>

Applicable Materials: film, paper, printing, aluminum laminate, etc.

Minimum Resolution: X=0.17 mm (width resolution) Y=0.30 mm (travel direction resolution)/Maximum Inspection Width: 1,300 mm (when 3 line color cameras (4,000 K) and 2 inspection units are used at 300 mpm)

Detectable Defects: micro-defects larger than 0.34 (X) × 0.60 (Y) mm, ink splatter, pinholes, contaminants (bugs, etc.), unprinted dots, line defects

Characteristics:

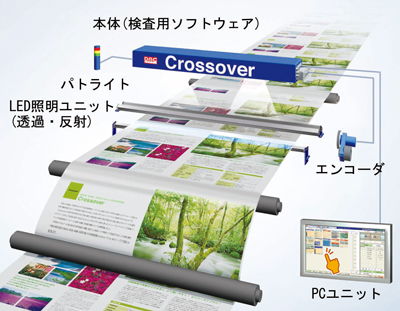

To appeal to the widest customer base possible, Crossover is designed for simple operation with high performance. We simplified the structure of Crossover by eliminating the controller and lighting power unit, making it compact, space saving, and reasonably priced. To reduce the burden on the operator, the display structure is easy to understand and intuitive. Inspection can be started with as few as three key strokes of the PC.

Specifications:
Inspection Targets: film, paper, aluminum laminate, etc.
Maximum Inspection Width: 1,200 mm
XLC402: W0.15 mm×L0.3 mm resolution at an inspection speed 240 m/min.
XLC402-F: W0.15 mm×L0.375 mm resolution at an inspection speed 300 m/min.

Applications:
Spunbond, Laminator/Coater, Slitter, Winder/Cutter
