Characteristics:

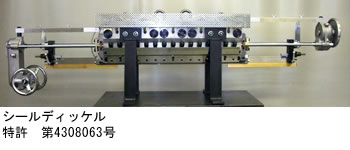

-Compared to standard deckle bars, the seal property is greatly improved and there is no edge sagging and beading
-When changing the width, the sealed deckle can be moved to allow the angled surface of the lip to be cleaned
-The sealed deckle bar has a higher strength and durability than the standard deckle bar
-The entire surface of the main body and lip are ground
-The inside of the manifold is given a mirror finish
-High thickness precision
-Purge is simple and fast (built-in resin removal plug)
-Simple structure, excellent operability, high durability

Applications:
Extrusion lamination

Specifications:
-T-die Width: 1,000 to 4,300 mm
-Options: electronic width control

Characteristics:

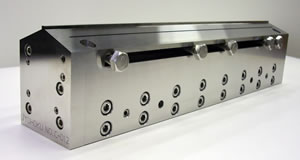

By combining our many years of experience with T-dies and precision processing technology, we have developed this ultra-precision coating die.
Die Straightness: less than 0.002 mm at L1,000 mm
less than 0.005 mm at L2,000 mm
Die Surface Roughness: Rmax less than 0.2

Specifications:
Material: SUS
Coating Thickness: thin to thick films
Die Width: 300 to 2,200 mm
Other specifications can be made to meet customer requests.

Options:
Special arbitrary lip positioning control mechanism die (patented)
