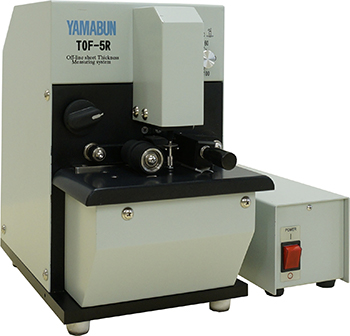

(Feature)
– It measures simply and quickly with off-line thickness measurement.
– It shows measured data i real time at a display.
– It can save the measured data in PC automatically.
– Because of measuring as automating transport, there is not personal error on the measured data.
– It can be use for blown film adjustment by radar chart.

(Specification)
Thickness: 0.02 – 0.2 mm
Measurement length: 10 – 10000 mm
Measuring pitch: 0.1mm~
Minimum display value: 0.1µm
Otherwise, TOF-4R type measures 30 µm – 3 mm thickness, and TOF-6R type has 0.01 µm minimum display value and 0.1mm measurement pitch, TOF-C2 type is non-contact electrostatic capacity type for thin film and optical film, and there is a high accuracy type using spectral interference for transparent film.

(Feature)
*Measure thickness but not basis weight by non-contact.
*Full width measurement during manufacturing sheet.
*Easy operation without license, permission, and standard curve.
*Condition of sheet can be seen at first sight by a dedicated software.
*It is not affected by quality, color, and pattern of material.
*When the sheet thickness is over set value, an alarm on automatic thickness monitoring function goes off.

(Specification)
Thickness: 〜3mm
The maximum measurement width: 3500 mm
Measurement pitch: 1mm〜　(during scanning measurement)
Minimum display value: 0.1 µm
Scanning speed: 100 mm/sec
* It is possible to suggest appropriate measurement systems among X-rays type, air type, contact type, etc. corresponding to object to be measured.
