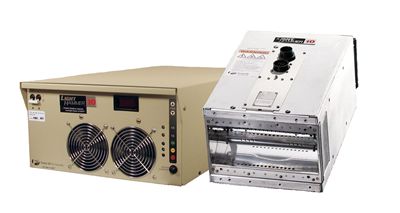

Light Hammer 10 Electrodeless UV Curing System

Heraeus Noblelight Fusion UV K.K.
LH10

The Light Hammer 10 UV curing device brings all of the benefits of microwave-powered UV lamps to a ten-inch (254 mm) system. Using DC power supply irradiation, the system is able to form cured films with more uniform molecule sizes than AC power supply UV lamps.

Characteristics:
*Solid-state DC power supply
-Reduced power costs
-Reduced noise
-Space savings
-Improved curing performance and efficiency via steady light irradiation
*Electrodeless Lamp
-High output and intensity
-Long-life
-Low-heat
-Instant lighting (irradiation is possible in seconds)
-Steady output and spectrum (no drop in output for the entire life of the lamp)

Applications:
-Functional UV coating film forming
-UV curing of complex 3D substrates
-Coating of cured film surfaces that require smoothness
-Coating of surfaces that require strong adhesion with the substrate
-Coating of high-concentration pigment coatings
-Ultra-thin and ultra-thick coatings, etc.

Specifications:
-Lamp Length: 25 cm (lamps can be arrayed to form wide systems)
-Maximum Output: 240 W/cm
-Output Level: variable between 35 and 100% of output
-UV Wavelength (spectrum): lamp bulb can be chosen depending on the application

As a pioneer in UV curing devices and process technology, Fusion UV Systems is a leading global supplier.


Contact Information:
1-9-3 Shinkawa, Chuo-ku, Tokyo 104-0033 Japan
TEL.+81-3-5542-3980  FAX.+81-3-5542-3992
Email:info@fusionuv.co.jp
URL:http://www.fusionuv.co.jp/

Sales Office:

Products:
UV Lamps, UV Curing Systems, UV Meters

To request detailed materials on the above product, please click the contact button below.
