It realizes highly precise meandering control of web sheet conveyance with the state-of-the-art technology.
LPC web guide system has been used widely in paper, a film, rubber, the fiber industry, etc. since the development / commercial production in 1953.

[ Feature ]
■ The LPC web guide system consists of a detector, a control device, and a drive machine.
A control device can be chosen based on selection of a detector and a drive machine.
■ General classification of a detector will divide it into an optical reflective type, an optical transmission type, and an ultrasonic transmission type.
A reflective type detector is mainly used for detection of a line mark, and a penetration type detector is mainly used for the edge detection of a web.
■ According to a form of operation, a straight line type actuator, a rotating type roll guider, and a revolving control motor can be chosen.

[ Use ]
Slitter, laminator, and web guide at unwinder, rewinder, intermediate roll control in the printing or converting process line.

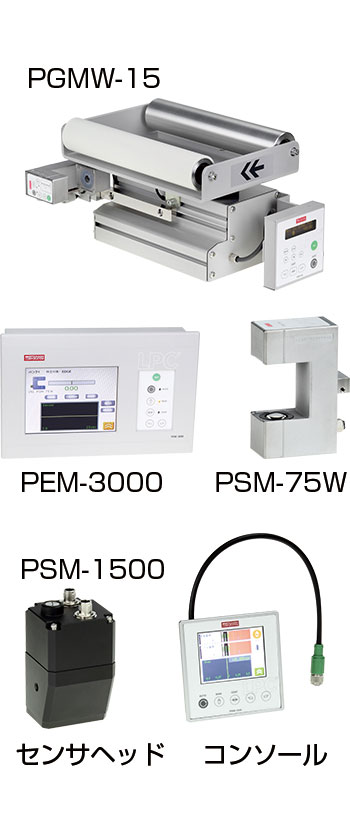

[ Model name ]
– Control panel : PEM-200、 PEM-3000
– Detector : PSM-46W、 PSM-75W、 PSM-270、 PSM-2000、 PSM-1500
– Actuator: PDM-400,610,620,650
– Roll guider : PGM-15、 PGMW-15、 PGM-8000、 PGM-400

[Feature]
– Compared with conventional device PW-1000, it raises the resolution of control 10 times and raises a response 3 times. The highly precise meandering correction control with little hunching is possible.
– It equips with a touch panel (5.7-inch color TFT). Since it can be operated intuitively, setup and adjustment can be performed in comfort. The operating condition of the amount of corrections of a line or a drive machine is also displayed clearly. It can operate while controlling a meandering correction.
– Compared with the conventional device, the depth size was miniaturized to 60%.
