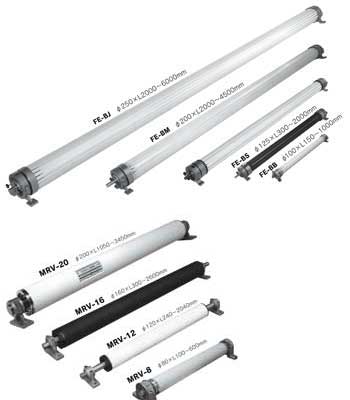

Flat Expander (FE), Miravo Roll (MRV)

mitsuhashi_ex

Flat expanders (FE) are elastic band type straight wrinkle removing rolls, and expand the following webs (sheets) and remove wrinkles without distorting a web. The flat expander has obtained high evaluation from the consumer as a wrinkle removing roll can be used easily with its light rotation. Since it is an elastic band type, an elastic band can be easily exchangeable on the site.

[ Applicable machine ]
Slitter, laminator, winder, coater, printing machine

[ Applicable web ]
Cloth, nonwoven fabric, film, paper, glass fiber

Miravo Roll (MRV) is a rubber tube type straight wrinkle removing roll, and the webs, such as a nonwoven fabric, a plastic film, paper, glass fiber, and metallic foil, are ideally expanded and at the same time a wrinkle can be removed without distorting a web.
Miravo Roll (MRV) is designed to be adapted for the factory line of a thinner web which needs more nearly high-speed and more precise expansion as compared with an elastic band type (FE) wrinkle removing roll.

[ Applicable machine ]
Winder, slitter, coater, printing machine, laminator, metalizing machine, copper or Al foil manufacturing process

[ Applicable web]
A nonwoven fabric, film, paper, glass fiber, metal foil


Contact Information:
1, Yamanochi Sekisancho, Ukyo-ku Kyoto-shi, Kyoto, 615-0082, Japan
TEL.+81-75-316-3300  FAX.+81-75-313-7595
Email:info@mitsuhashi-corp.co.jp
URL:http://www.mitsuhashi-corp.co.jp/en/

Sales Office:

Products:
LPC, Air Shaft, Wrinkle Removing Roll
